User Defined Routes and Network Virtual Appliances

DISCLAIMER: The information in this guide is provided "as is" without any guarantee of completeness, accuracy, timeliness, or of the results obtained from the use of this information. The author assumes no responsibility for any errors or omissions in the content. It is meant for general information purposes only and should not be used as a substitute for professional advice. The author is not responsible for any damages caused by the use of this information. By using this guide, you agree to hold the author harmless from any and all claims, damages, or expenses that may arise from your use of the information.

Introduction

This document covers services that are actively being used in my Azure lab. Furthermore, this document is to be used as more of a reference or checklist, than a detailed, step-by-step guide. It is assumed that you have basic understanding and know-how of the following Azure services/resources:

  • Azure VNet (Virtual Network).
  • Azure VNet Peering
  • Azure Subnets.
  • Azure NSG (Network Security Groups).
  • Azure Route Tables.
  • Sophos XG Next-Gen Firewall as the NVA (Network Virtual Appliance).

Requirements

  • Pending...

Diagrams

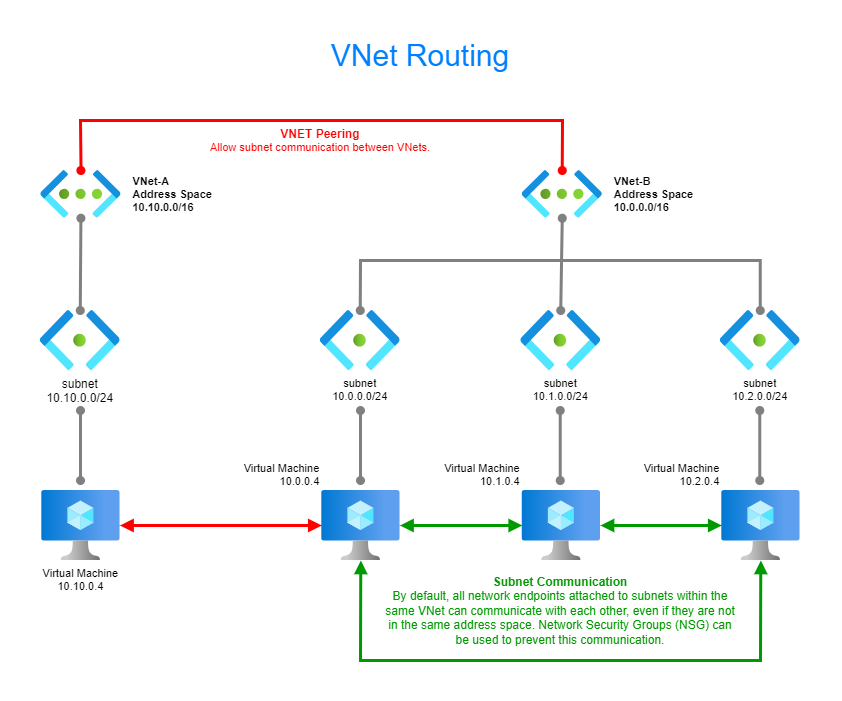

VNet Routing

The diagram presented here utilizes generic VNet names such as VNet-A, VNet-B, etc. It is intended to serve as a study guide for comprehending the connection between Azure Subnet communication and the communication between Azure Subnets and VNets via VNet Peering. In the production network of my Azure lab, Azure VNet Peering and Azure Route Tables are employed to facilitate communication with the Sophos XG Next-Gen Firewall, which resides within a separate VNet.

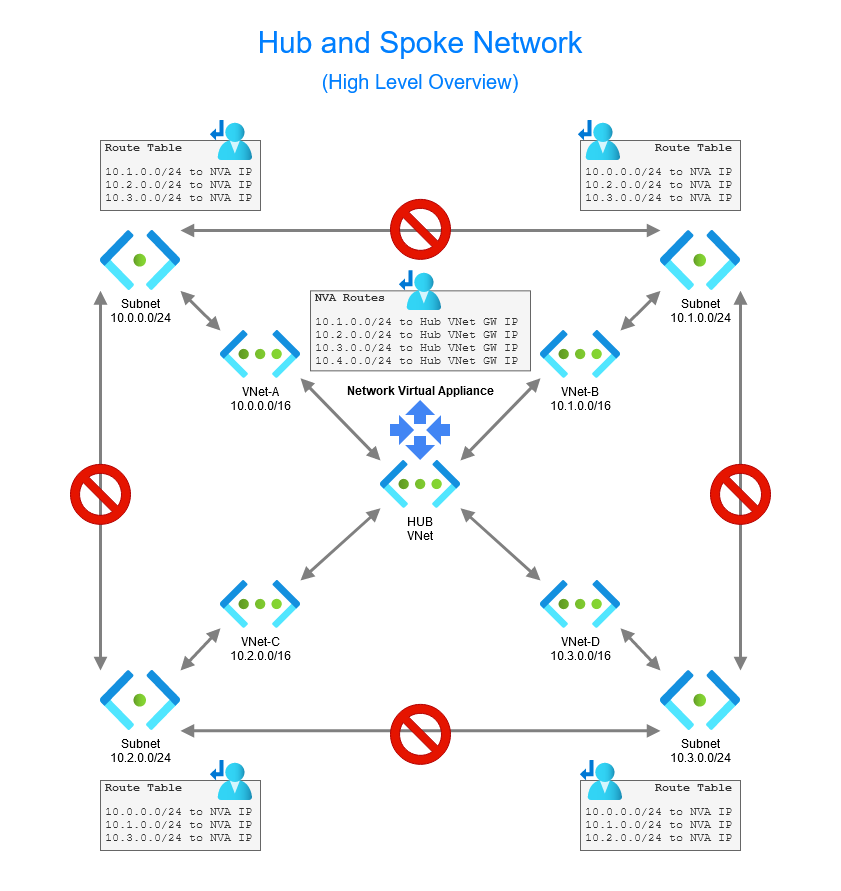

Hub and Spoke Network (High Level Overview)

In this diagram, generic VNet names like VNet-A, VNet-B, etc. are used to depict the scenario. The diagram highlights the significant relationship between VNets when the Sophos XG Next-Gen Firewall is deployed in the "HUB" VNet. By default, the "spoke" VNets cannot directly communicate with each other. To establish connectivity, the spoke VNets utilize Azure VNet Peering to establish connections with the HUB VNet.

To enable traffic routing between VNets, Azure Route Tables are created and configured on each spoke VNet. These route tables are used to direct traffic towards the HUB VNet. In turn, the HUB VNet utilizes a Sophos Static Route table to route traffic to the HUB VNet's gateway IP address. Once the gateway receives the traffic, it possesses the necessary routing information to forward the traffic to other spoke VNets.

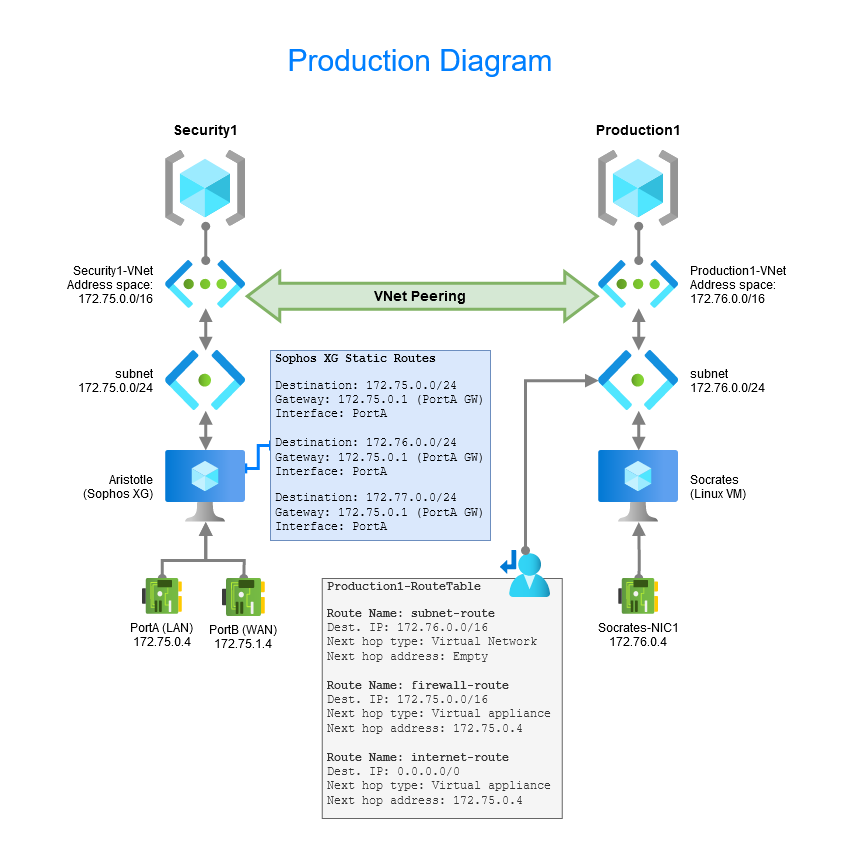

Production Diagram and Notes

The provided production diagram includes the names of all the resources and services currently being utilized in my Azure lab. Please observe the presence of two VNets and the VNet Peering established between them. Additionally, it is important to note the significance of the Sophos XG Static Routes and the production1-routeable for ensuring proper data flow. These routing mechanisms play a crucial role in maintaining the correct flow of data within the network.

Azure Network Configuration

Sophos XG Post Deployment Configuration

Configure Interface Monitoring

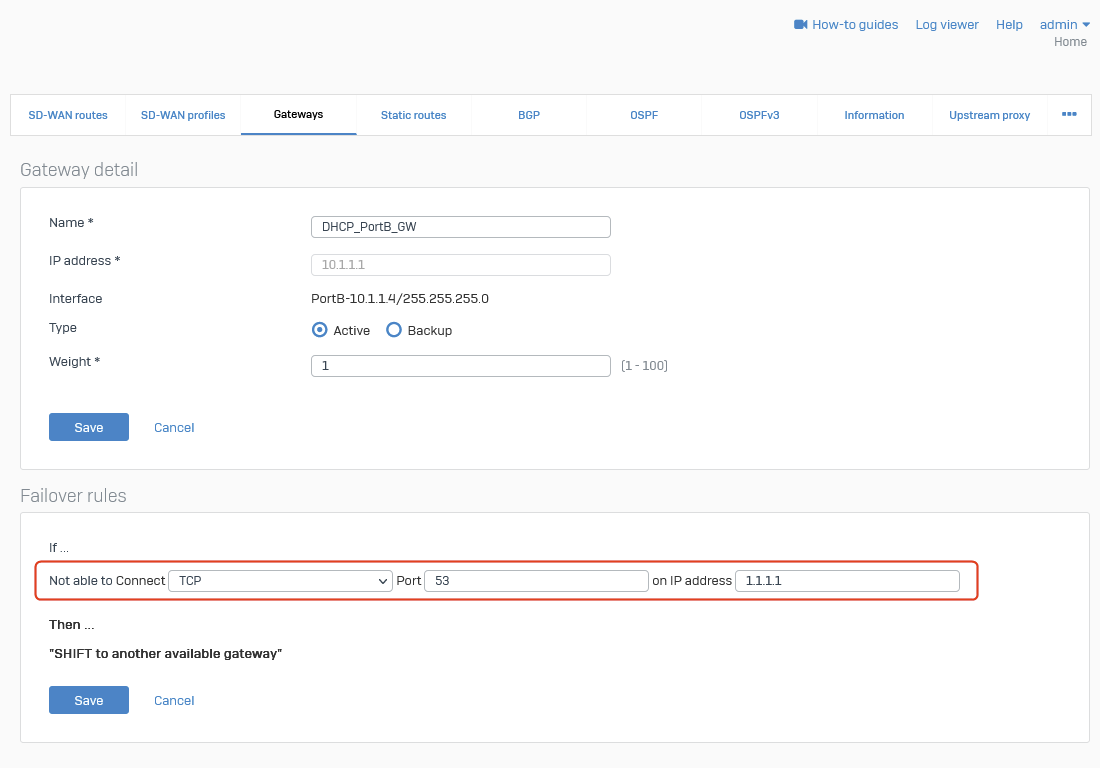

  1. Navigate to Routing ⮞ Gateways ⮞ Edit DHCP_PortB_GW.
  2. In the Failover rules section, there should be a single default rule. Click the Edit button.
  3. Change PING to TCP.
  4. Change Port * to 53.
  5. Change the IP Address to 1.1.1.1.
  6. Save the changes.

Screenshot example:

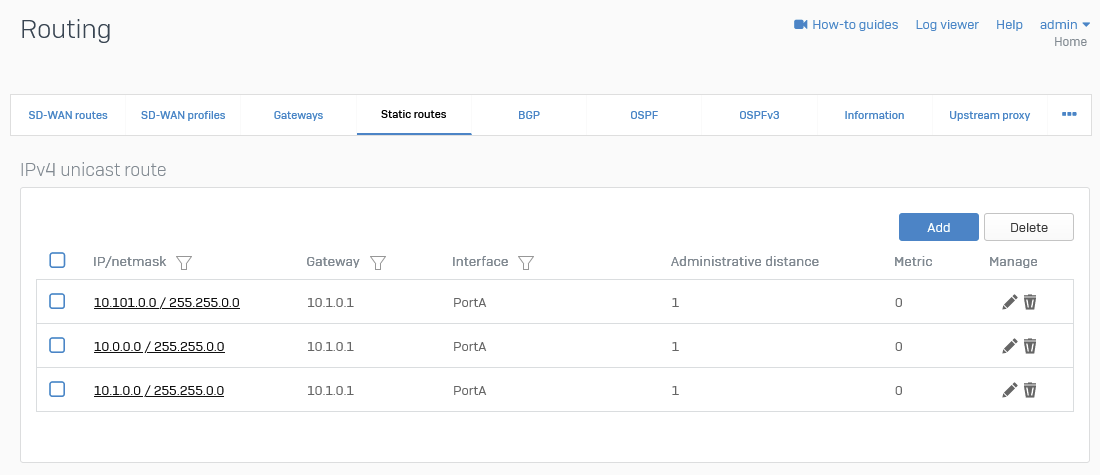

Configure Static Routes

  1. Navigate to Routing ⮞ Static routes.
  2. Add an IPV4 unicast route.

Screenshot example:

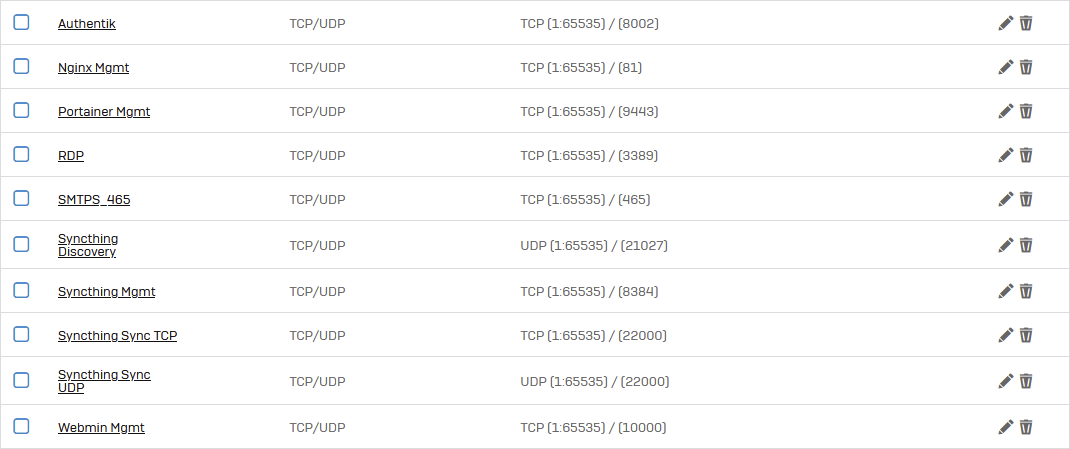

Configure Services (Ports)

Add Service(s)

Navigate to Hosts and services ⮞ Services ⮞ Add a service (port assignment).

Production Service(s) List
Name
 Type
 Protocol
 Source port
 Destination port
Authentik
 TCP/UDP
 TCP
 1:65535
 8002
Nginx Mgmt
 TCP/UDP TCP 1:65535 81
Portainer Mgmt TCP/UDP TCP
 1:65535 9443
RDP TCP/UDP TCP
 1:65535 3389
SSH (TCP Only) TCP/UDP TCP
 1:65535 22
SSH (socrates) TCP/UDP TCP
 1:65535 2222
Syncthing Discovery TCP/UDP UDP
 1:65535 21027
Syncthing Mgmt TCP/UDP TCP
 1:65535 8384
Syncthing Sync TCP TCP/UDP TCP
 1:65535 22000
Syncthing Sync UDP TCP/UDP UDP
 1:65535 22000
Webmin Mgmt TCP/UDP TCP
 1:65535 10000

Sreenshot example:


Add IP Host

Navigate to Hosts and services ⮞ IP host ⮞ Add a IP host.

Production Service(s) List
Name
 IP version
 Type
 IP address
 Subnet
 IP host group
Azure-VM-socrates
 IPv4
 IP address
 10.76.0.4
 /32
Azure-VNetwork-AzureLab1-VNet IPv4 IP subnet
 172.75.0.0
 /16 Trusted VNets (Azure - Marthur)
Azure-VNetwork-Production1-VNet IPv4 IP subnet 172.76.0.0
 /16 Trusted VNets (Azure - Marthur)
Azure-VNetwork-Security1-VNet IPv4
 IP subnet
 172.77.0.0
 /16
 Trusted VNets (Azure - Marthur)
Cloudflare - 173.245.48.0/20 IPv4
 IP subnet 173.245.48.0 /20
 Cloudflare
Cloudflare - 103.21.244.0/22 IPv4 IP subnet 103.21.244.0 /22
 Cloudflare
Cloudflare - 103.22.200.0/22 IPv4 IP subnet 103.22.200.0 /22
 Cloudflare
Cloudflare - 103.31.4.0/22
 IPv4 IP subnet 103.31.4.0 /22
 Cloudflare
Cloudflare - 141.101.64.0/18
 IPv4 IP subnet 141.101.64.0 /18
 Cloudflare
Cloudflare - 108.162.192.0/18
 IPv4 IP subnet 108.162.192.0 /18
 Cloudflare
Cloudflare - 190.93.240.0/20
 IPv4 IP subnet 190.93.240.0 /20
 Cloudflare
Cloudflare - 188.114.96.0/20 IPv4 IP subnet 188.114.96.0 /20
 Cloudflare
Cloudflare - 197.234.240.0/22 IPv4 IP subnet 197.234.240.0 /22
 Cloudflare
Cloudflare - 198.41.128.0/17
 IPv4 IP subnet 198.41.128.0 /17 Cloudflare
Cloudflare - 162.158.0.0/15
 IPv4 IP subnet 162.158.0.0 /15
 Cloudflare
Cloudflare - 104.16.0.0/13
 IPv4 IP subnet 104.16.0.0 /13
 Cloudflare
Cloudflare - 104.24.0.0/14
 IPv4 IP subnet 104.24.0.0 /14
 Cloudflare
Cloudflare - 172.64.0.0/13
 IPv4 IP subnet 172.64.0.0 /13 Cloudflare
Cloudflare - 131.0.72.0/22
 IPv4 IP subnet 131.0.72.0 /22
 Cloudflare
PortA (LAN)
 IPv4
 IP address
 172.75.0.4
 /32
PortB (WAN)
 IPv4
 IP address
 172.75.1.4
 /32
Trusted - Home - Rockbrook IPv4 IP address 47.188.244.16 /32
 Trusted WAN
Trusted - Home - Terlingua IPv4 IP address 47.188.161.140 /32
 Trusted WAN
Trusted - Work - Buick IPv4 IP address 208.180.243.26 /32 Trusted WAN

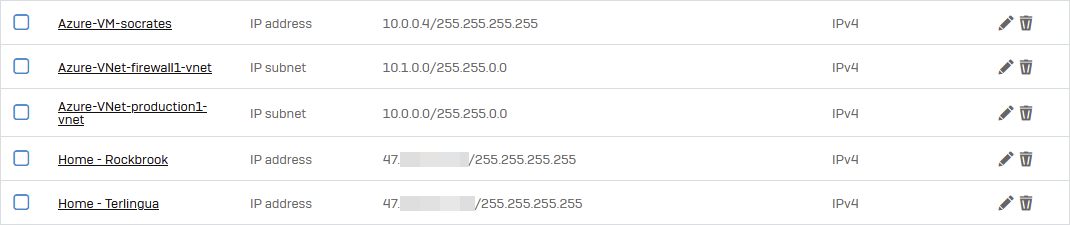

Screenshot example:

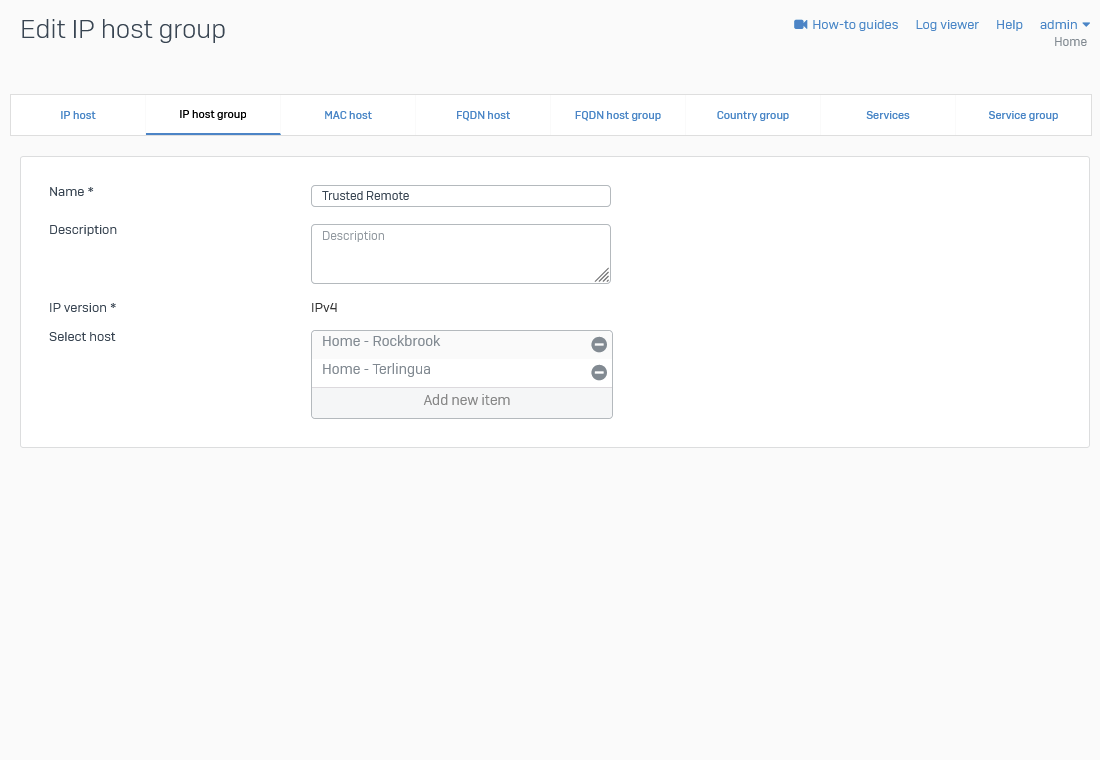

Add IP Host Group

Navigate to Hosts and services ⮞ IP host ⮞ Add a IP host group.

Production Service(s) List
Name
 Description
 IP version
 Select host
Trusted VNets (Azure - Marthur)

Azure-VNetwork-AzureLab1-VNet
Azure-VNetwork-Production1-VNet

Azure-VNetwork-Security1-VNet
Trusted WAN
IPv4
 Trusted - Home - Rockbrook
Trusted - Home - Terlingua
Trusted - Work - Buick

Screenshot example:


Firewall/DNAT Rules

The Traffic to LAN rules were created using the Server access assistant (DNAT) and then the Firewall and Nat rules were cleaned up.

I turned off the "auto added" Firewall and DNAT rule for SMTP/SMTP(S).

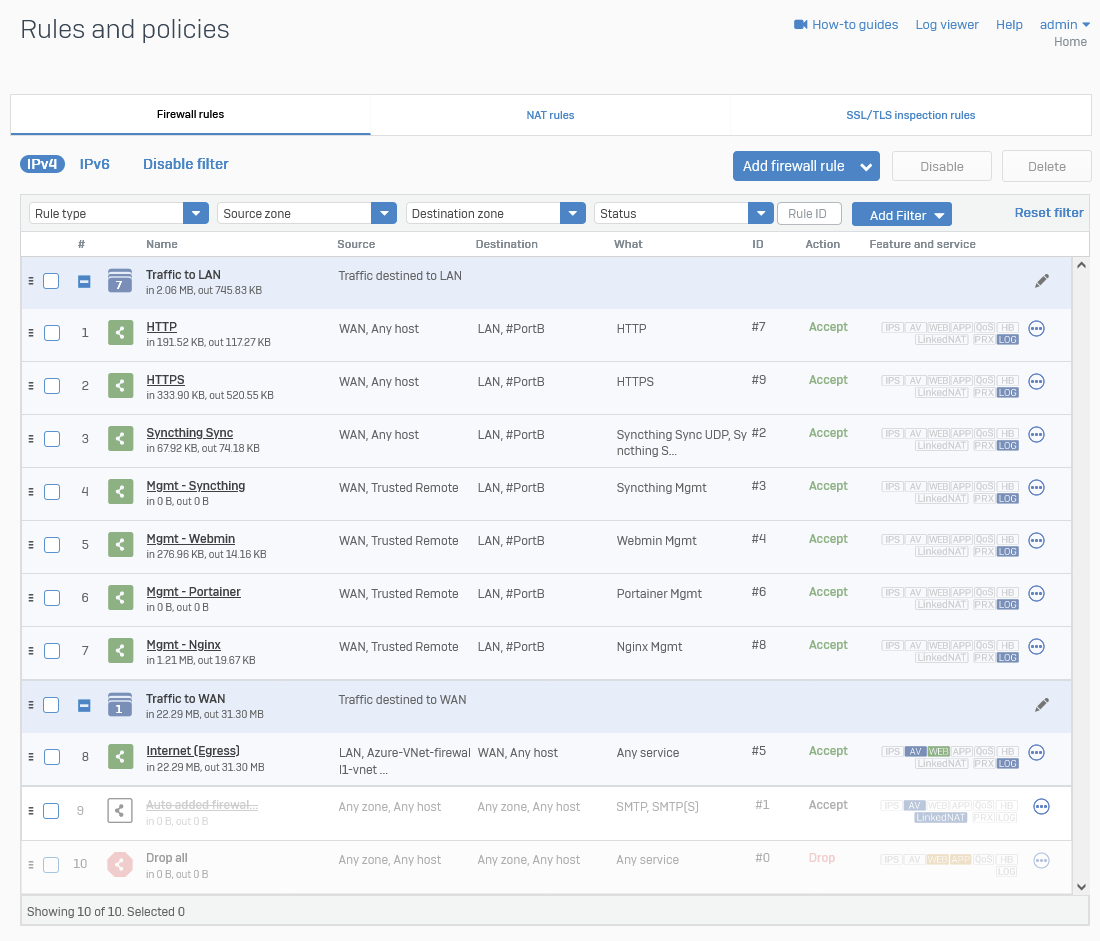

Firewall Rules

Screenshot example:

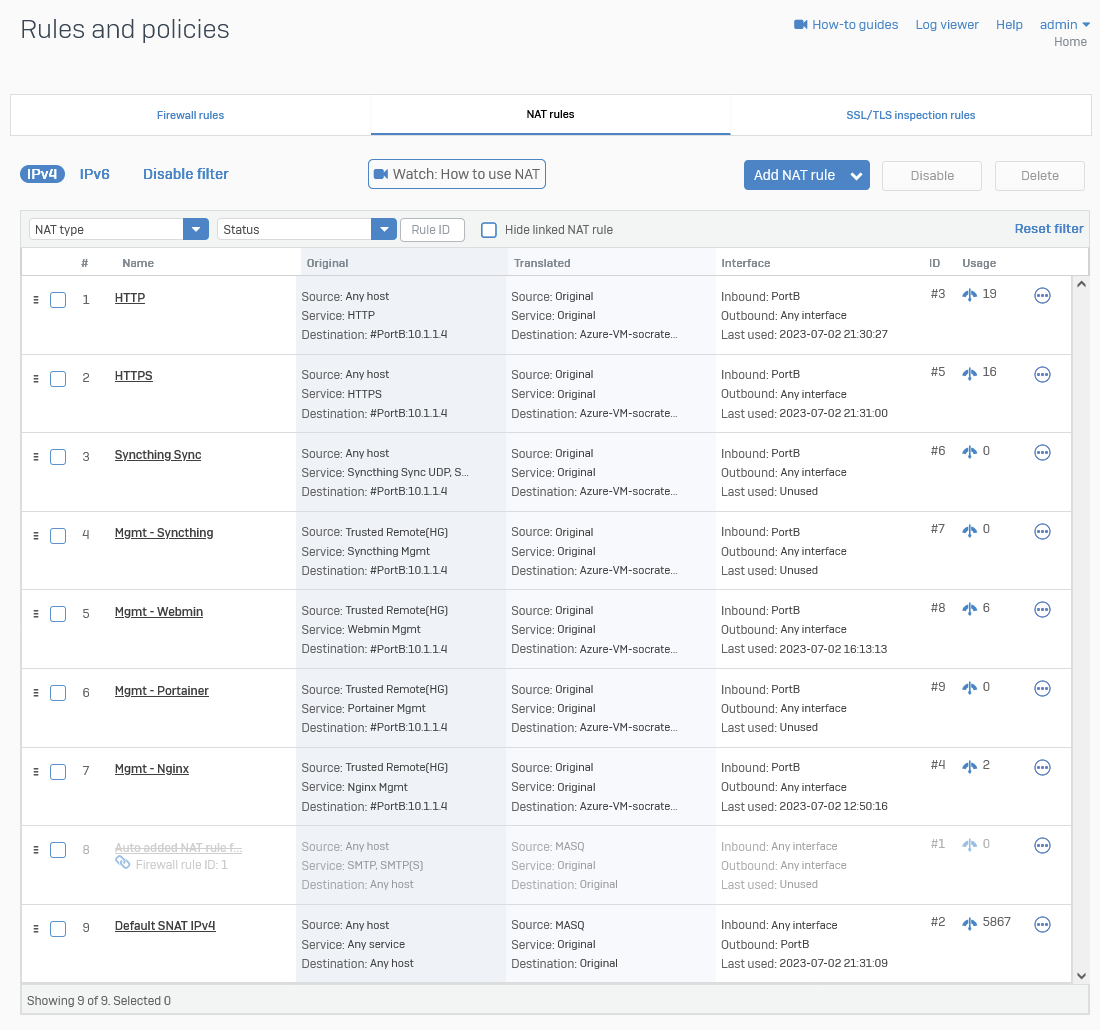

DNAT Rules

Screenshot example:

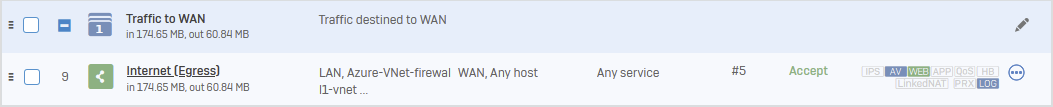

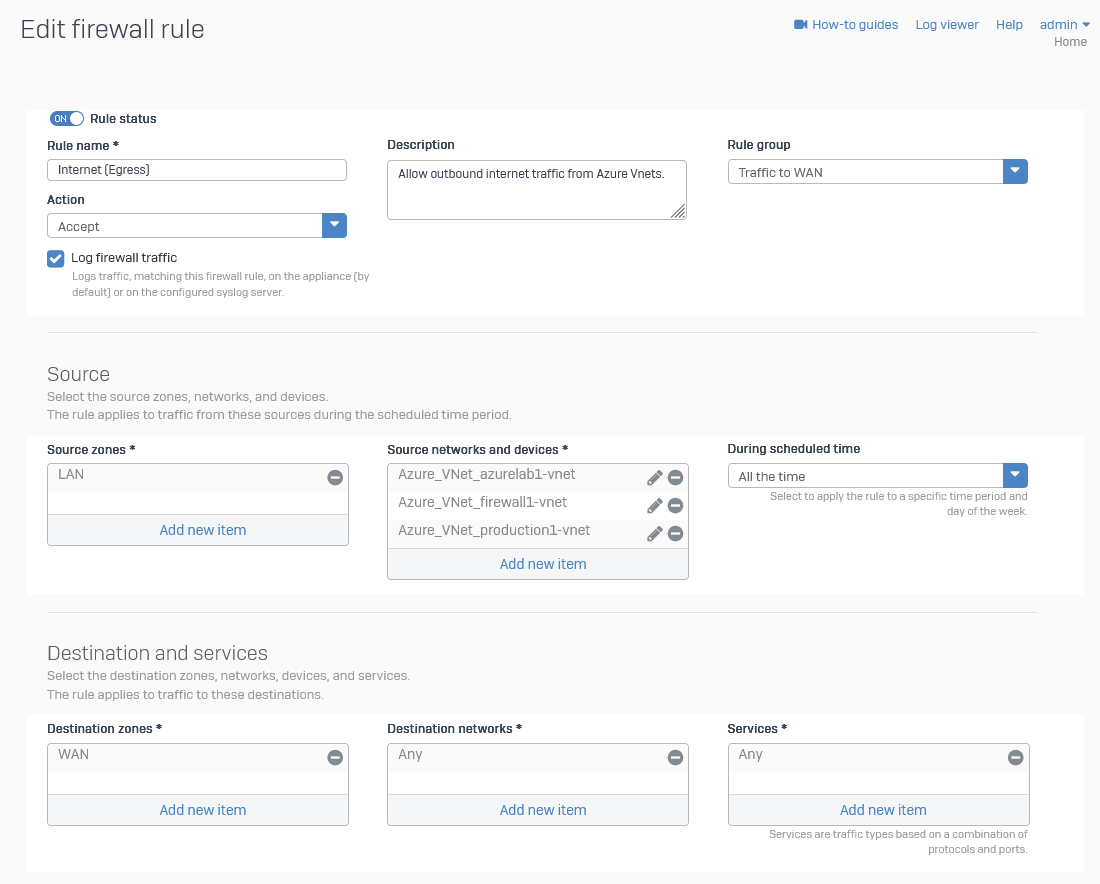

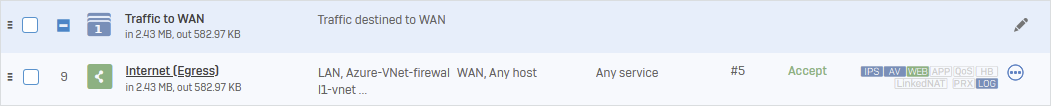

Internet Access (Egress)



Screen Shot 2023-07-06 at 20.50.15.png

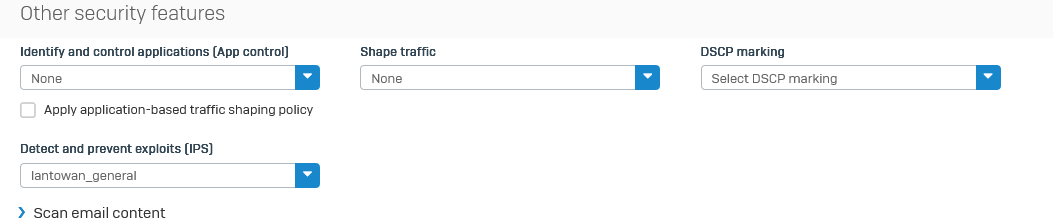

Screen Shot 2023-07-06 at 20.50.45.png

Import/Update Certificates for Sophos WAF

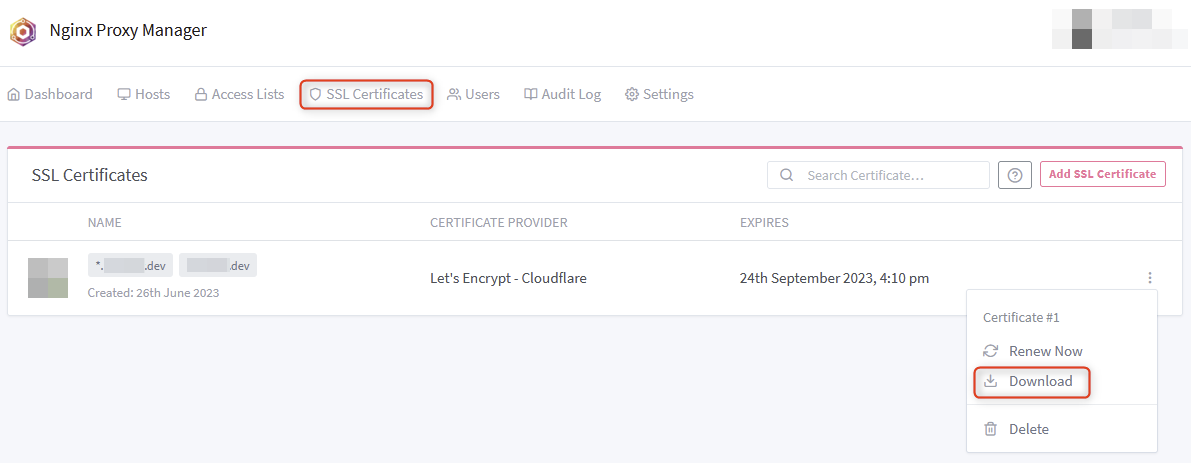

Download Certificate (from Nginx Proxy Manager)

Download the domain related certificates from Nginx Proxy Manager:


  1. Login to Nginx Proxy Manager (Web GUI).
  2. Navigate to SSL Certificates.
  3. Next to the certificate, click on the hamburger/elipses icon and select Download.
  4. Extract the contents of the zip file.
  5. Rename privkey1.pem to privkey1.key respectively - Sophos requires this change.

Add/Import the Certificate into Sophos

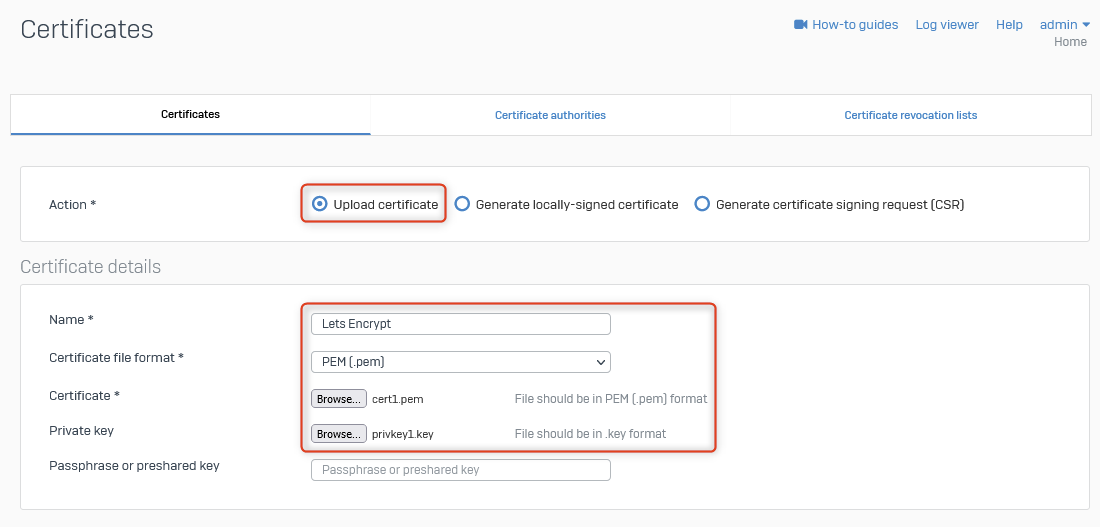

  1. Navigate to Certificates ⮞ Certificates ⮞ Add a new certificate:

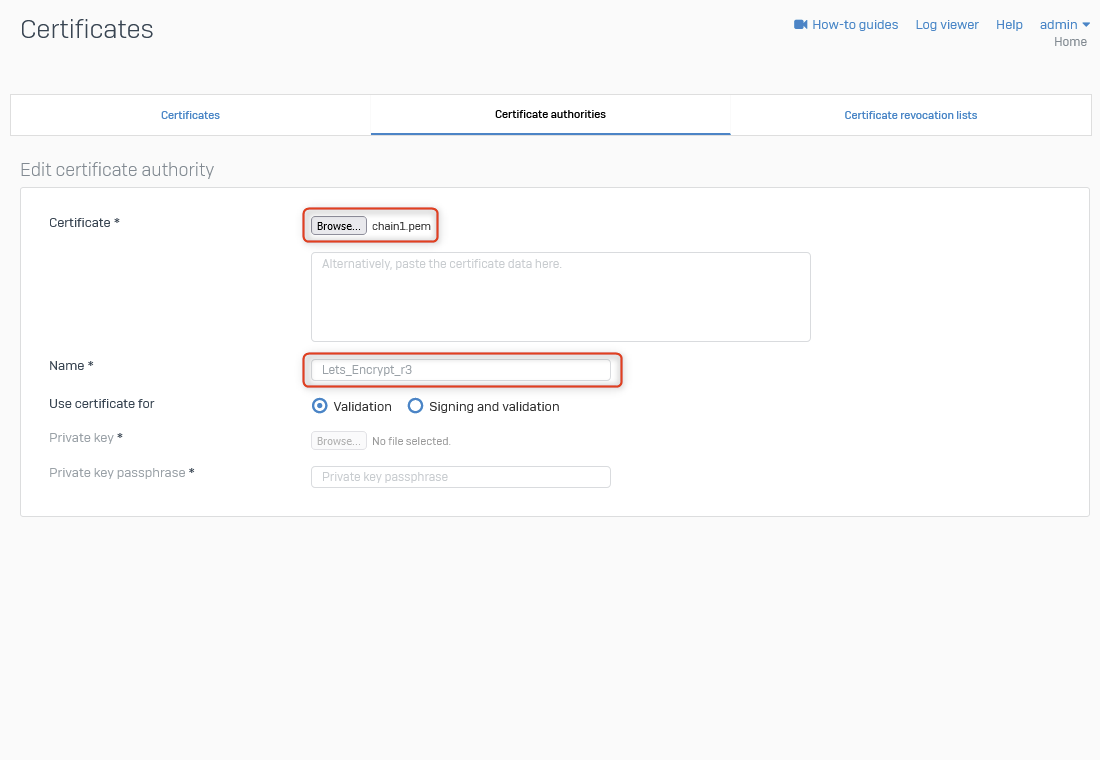

  2. Navigate to Certificates ⮞ Certificate authorities ⮞ Add a new certificate:


Enable Intrusion Prevention

  1. Navigate to Intrusion Prevention ⮞ IPS policies ⮞ and toggle ON IPS  protection.
  2. Navigate to Rules and policies ⮞ Firewall rules.
  3. Assign WAN TO LAN and LAN TO WAN IPS policies to their respective rules.

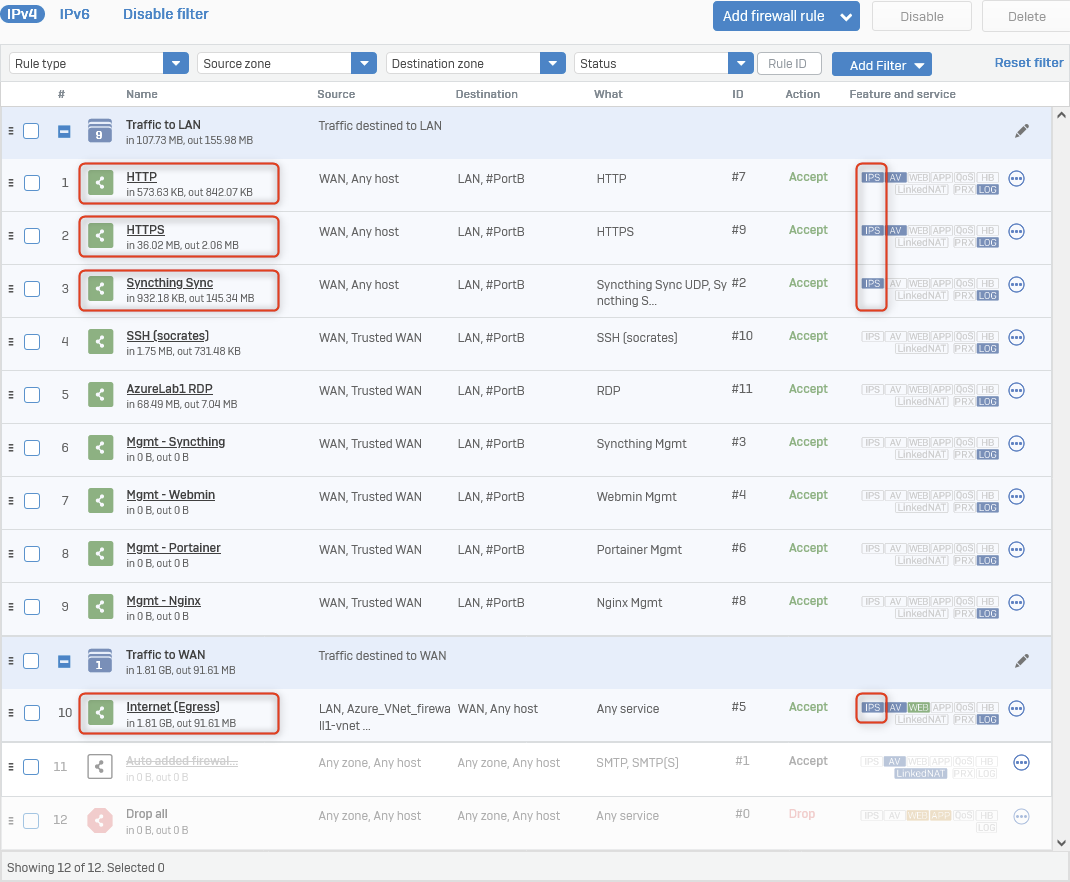

    In this scenario, the WAN to LAN policy is assigned to the HTTP and HTTPS rules, while the LAN to WAN policy is assigned to the Internet (Egress) rule:

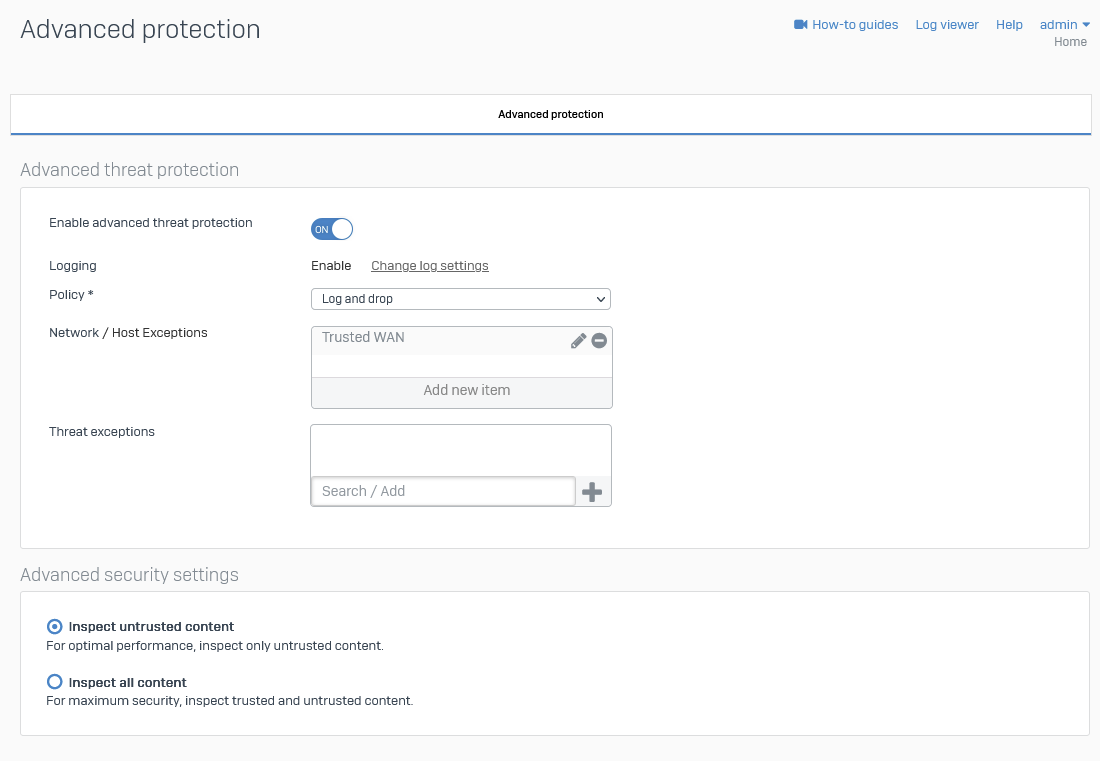

Enable Advanced Threat Protection

  1. Navigate to Advanced protection ⮞ and toggle ON Enable advanced threat protection.
  2. Enable logging.
  3. Add Trusted WAN to Network/Host Exceptions.
  4. Enable Inspect untrusted content.

Screenshot example:

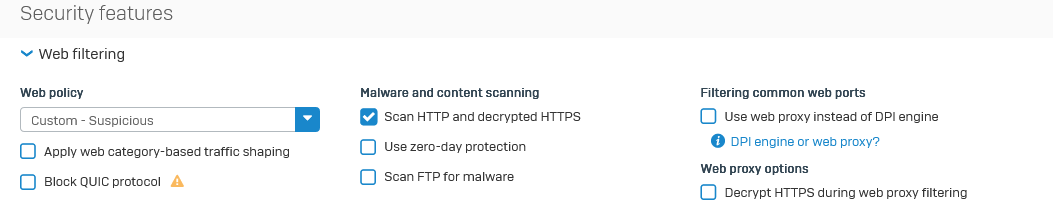

Enable and Configure Web Filtering

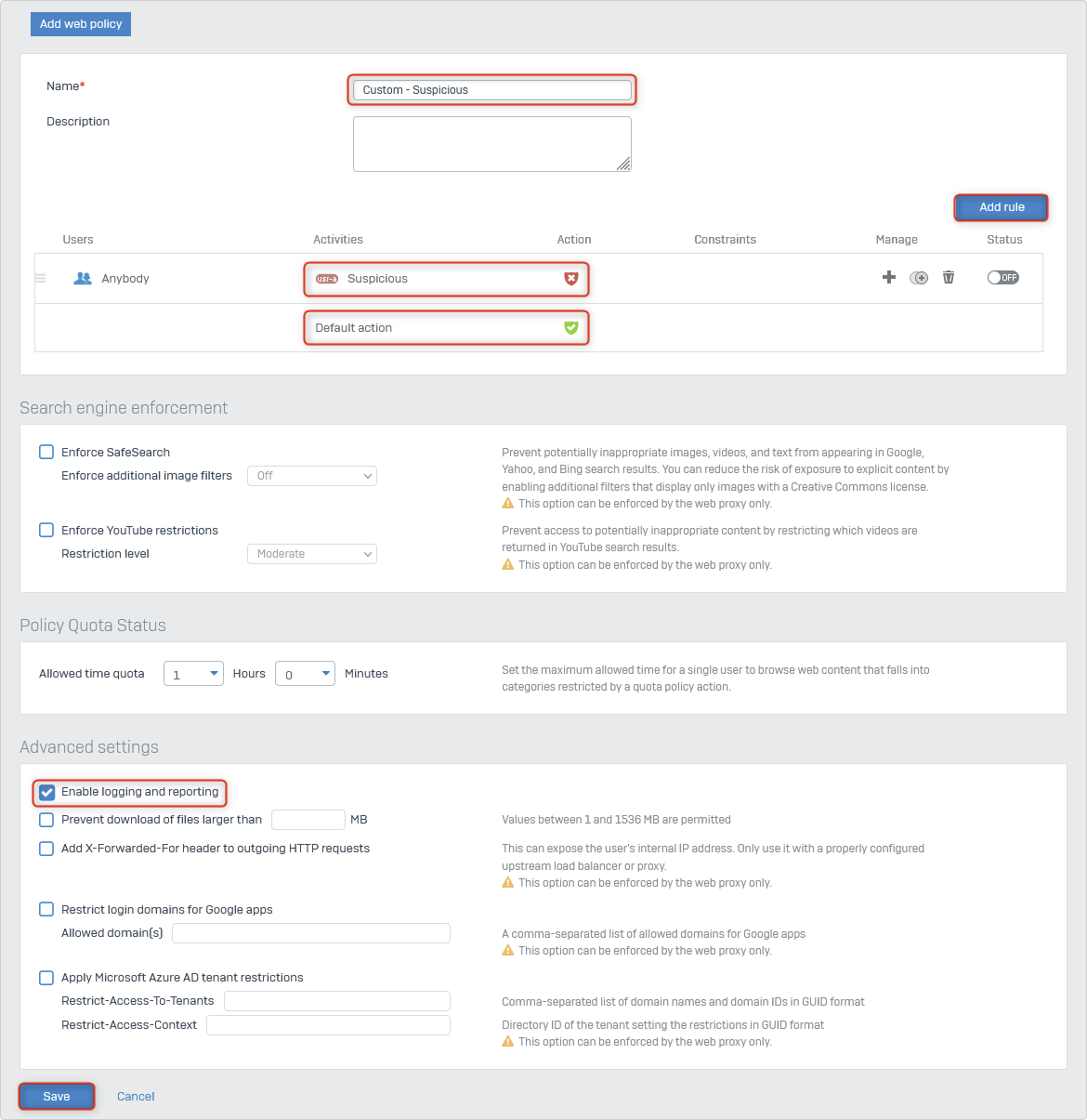

Create a Custom Web Policy
  1. Navigate to Web ⮞ Policies ⮞ Add Policy.
  2. Configure the following policy:


  3. Navigate to Web ⮞ General settings.

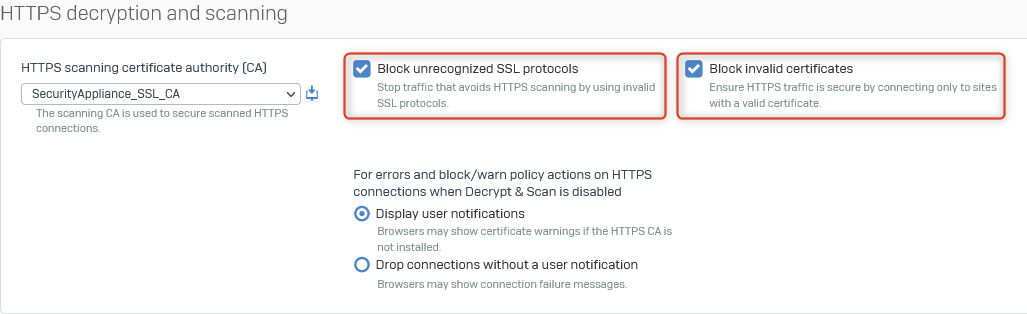

  4. Configure HTTPS decryption and scanning:


  5. Navigate to Rules and policies ⮞ Firewall rules.

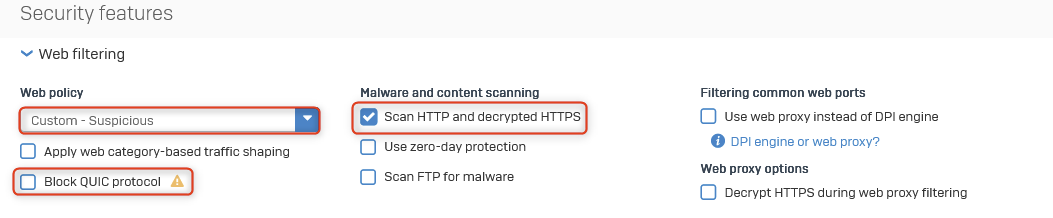

  6. Modify the Internet (Egress) rule:



Azure Routing Tables

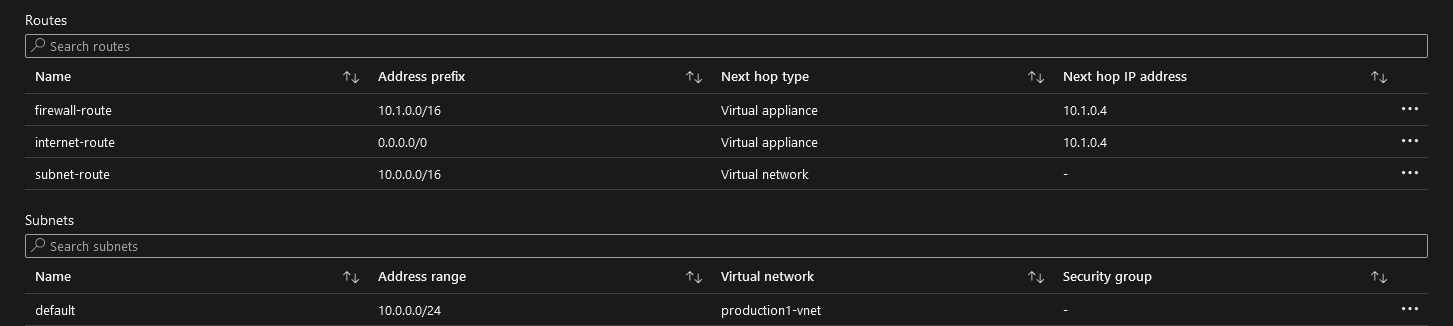

production1-routetable screenshot:

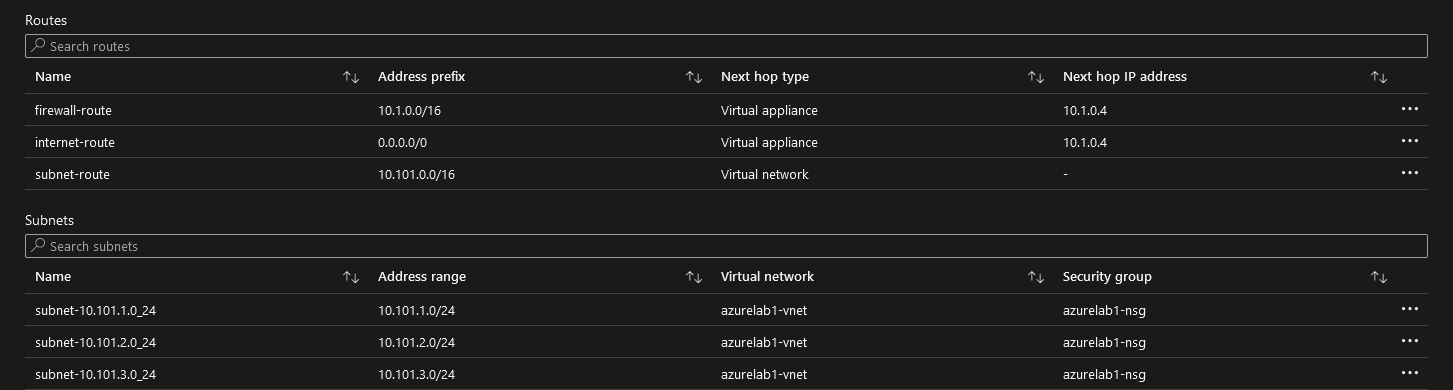

azurelab1-routetable screenshot:

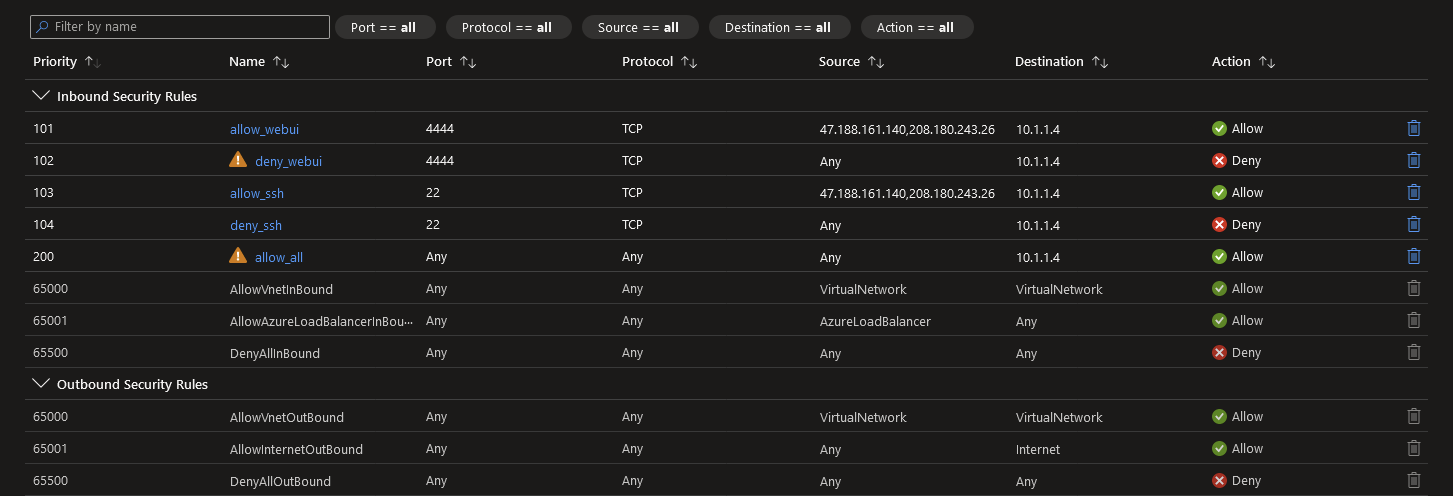

Azure Network Security Groups

SecurityGroup (Sophos Firewall):


Pending Documentation

Add Sophos Cert to VMs for Decryption.
Azure NSG for both VNets.
Azure Disable Public IP on Spoke VNet.
Cloudflare DNS DNS Only/Proxied configuration.
Nginx Proxy Manager Gotchas w/ Azure VMs.

Sources

  • N/A

KB Change/Issue Log

yyyy/mm/dd - Title

Issue

N/A

Solution

N/A
